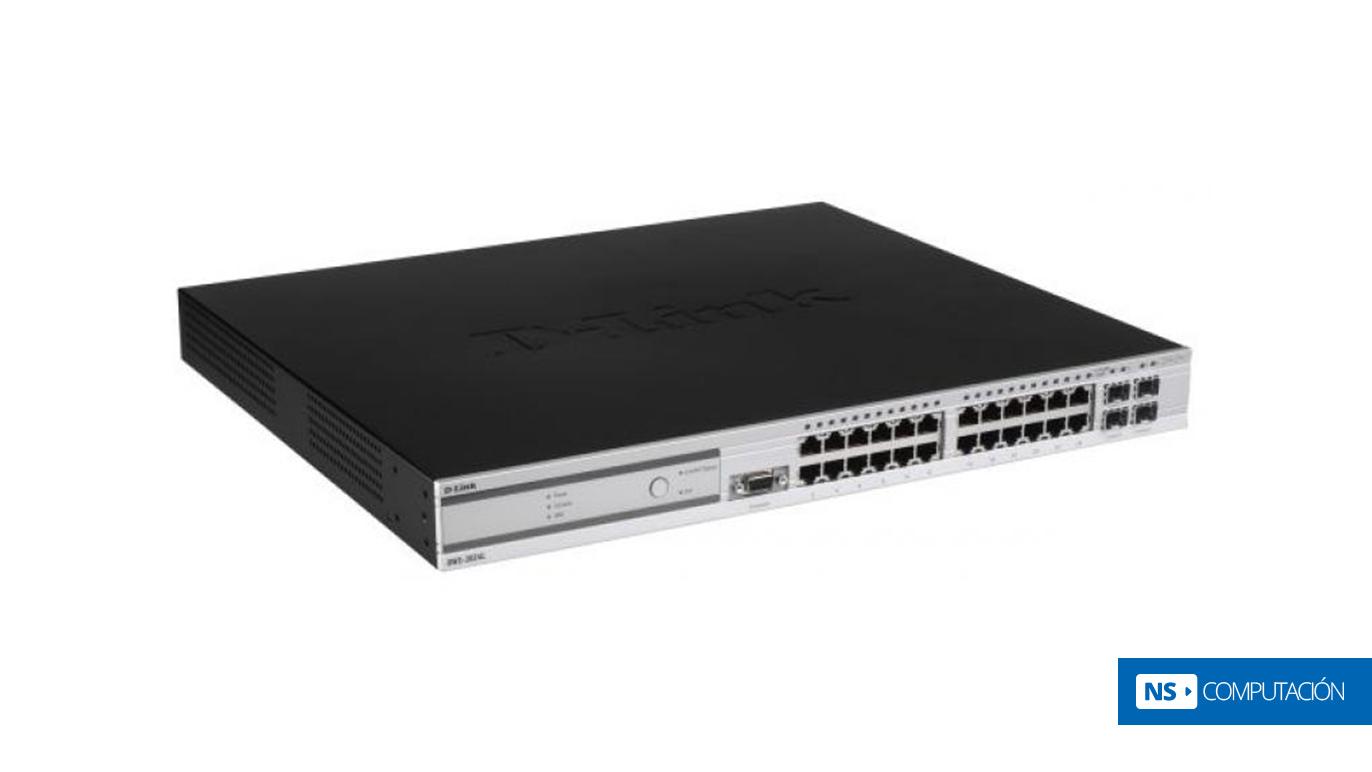

FICHA TECNICA
Interfaces - 24 10/100/1000Base-T Gigabit Ports with Integrated 802.3af PoE
- 4 SFP ports combo with last 4 10/100/1000BaseT ports
- 1 RS-232, Consola
Power over Ethernet - Standard: 802.3af
- Per Port Voltage Output: 15,4W
- Total Voltage output: 370W
- Auto Disable if Port Current over 350mA
Optional 1 Gbps SFP Transceivers ? DEM-310GT: SFP transceiver, 1000BASE-LX standard, single-mode fiber, max. distance 10km, 3.3V operating voltage
? DEM-311GT: SFP transceiver, 1000BASE-SX standard, multi-mode fiber, max. distance 550m, 3.3V operating voltage
? DEM-312GT2: SFP transceiver 1000BASE-SX standard, multi-mode fiber, max. distance 2km, 3.3V operating voltage
? DEM-314GT: SFP transceiver, 1000BASE-LX standard, single-mode fiber, max. distance 50km, 3.3V operating voltage
? DEM-315GT: SFP transceiver, 1000BASE-LX standard, single-mode fiber, max. distance 80km, 3.3V operating voltage
? DEM-330T/R: WDM SFP transceiver, 1000BASE-LX standard, single-mode fiber, max. distance 10 km, 3.3V operating voltage, Tx wavelength 1550 nm, Rx wavelength 1310 nm
? DEM-331T/R: WDM SFP transceiver, 1000BASE-LX standard, single-mode fiber, max. distance 10 km, 3.3V operating voltage, Tx wavelength 1310 nm, Rx wavelength 1550 nm
Estándares - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x, Flow Control
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3z
- ANSI/IEEE 802.3 Nway auto-negotiation
Método de Switching Store-and-forward
Switching Capacity 48 Gbps
Filtering Address Table 8K MAC address por dispositivo.
Jumbo Frame Hasta 9KBytes
MAC Address Learning - Actualización Automática
- Estáticas, definida por el usuario
Max. Forwarding Rate 35,71 Mpps
Packet Buffer Memory 750KBytes
SDRAM for CPU 256 MBytes
Flash Memory - Prom: 512 KBytes
- Runtime: 128 Mbytes (Compact Flash)
WLAN Management Capability - Up to 24 AP (Directly Connected and Indirectly Connected Through LAN Switch)
- Up to 1024 Tunneled users
-Up to 2048 non-Tunneled users
Roaming - Fast Roaming
- Intra-Switch Roaming
- Inter-Subnet Roaming
Access Control & Bandwidth Management - Up to 16 SSID per AP (8 SSID per RF Frecuency Band)
- AP Load Balancing basado en utilización o número de usuarios por AP
AP Management - AP software version auto-detection & central firmware dispatch
- AP Auto-Discovery
- Remote AP Reboot
- AP Monitoring: List Manged AP, Rogue AP, Authentication Failed AP
- Client Monitoring: List Clients Associated with Each Manged AP
- Ad-hoc Clients Monitoring
- AP Authentication Supporting Local Database and External RADIUS Server
- Centralized RF/Security Policy Management
WLAN Security - WPA Personal/Enterprise
- WPA2 Personal/Enterprise
- 64/128/152-bit WEP Data Encryption
- Wireless Station and AP Classification Based on RF Channel, MAC Address, SSID, Time
- Rogue and Valid AP Classification Based on MAC Address
- Encryption Type Support: WEP, WPA, Dynamic WEP, TKIP, AES-CCMP, EAP-TLS, TTLS, PEAP-GTC, PEAP-MS-CHAPv2, EAP-FAST
Captive Portal - Soporta autenticación local y externa (Radius)
- Hasta 128 usuarios en base de datos local
- Hasta 1024 usuarios concurrentes
- Los clientes del portal cautivo pueden hacer roaming dentro del switch. Si realiza roaming entre switches se requiera una re-autenticación
VLAN - IEEE 802.1Q Tagged VLAN
- VLAN Groups: Up to 3965
- Configurable ID: 1-3965
- GVRP
QoS (Calidad se Servicio) - WMM (Wireless Multimedia)
- 802.1p Priority Queues
- Max. N° de colas por puerto: 8
- Bandwidth Control: Granularity of one percent link speed
- CoS Based On Switch Port
- CoS Based On VLAN ID
- CoS Based On 802.1p priority
- CoS Based On DSCP
- Cos Based on TOS
- CoS Based On TCP/UDP port
- CoS Based On Destination/Source MAC Address
- CoS Based On Destination/Source IP Address
ACL (Access Control List) - Based on Switch Port
- Based on VLAN ID
- Based on 802.1p priority
- Based on MAC Address
- Based on DSCP
- Based on Protocol Type
- Based on Ethertype
- Based on IP Address
- Based on TCP/UDP port
IGMP Snooping - IGMP versión v1, v2
- Support IGMP Fast Leave
- Max. N° de grupos Multicast: 1K
Port Mirroring - One to One Port Mirroring
- Many to One Port Mirroring
Seguridad para el Acceso a la Red - Port security (hasta 20 MAC?s por puerto)
- Trap Violation Notification
- 802.1x: Port Based Access Control
- RADIUS Auth. for Mgmt Access
-TACACS+ Auth. for Mgmt Access
- SSL v3
- SSH v1, v2
- Denial of Service Protection
- Broadcast Strom Control: Granularity of one percent link speed
Spanning Tree - 802.1d STP
- 802.1w Rapid Spanning Tree RSTP
- 802.1s Multiple Spanning Tree MSTP
802.3ad Link Aggregation - Number of trunking groups: 32
- Number of ports Gigabit per trunk: 8
Funciones L3 - IPv4 Static Route
- Routing Table Size: Up to 128 Static Routes
- Floating Static Route
- VRRP
- Proxy ARP
Funciones de Administración Administración
- SNMP v.1, v.2C, v.3 RFC 1157, 1901, 1908, 2570, 2575
- Web-based GUI RFC 2068
- CLI (command line interface)
- Boot/DHCP client RFC 951, 1542
- DHCP Server
- Telnet Server: Up to 5 Session RFC 854
- Telnet Client
- TFTP client RFC 783
- RMON v1 RF C2819
- Multiple Configuration Files
- SNTP RFC 2030
- SYSLOG RFC 3164, 3195
- Dual Images
MIBs Soportadas
- MIB-II RFC 1213
- Bridge MIB RFC 1493
- SNMP v.2 MIB 1907
- RMON MIB 2819 (Previo RFC 1757)
- Entity MIB RFC 2737
- 802.1Q VLAN/802.1p MIB (RFC 2674)
- Etherlike MIB RFC 3635
- IF MIB RFC 2863 (RFC 2233)
- RADIUS Authentication Client MIB 2618
- RADIUS Accounting Client MIB 2620
- VRRP MIB RFC 2787
- DIFFSERV MIB RFC 3289
- Private MIB
RMON Groups 1, 2, 3, 9 (Alarm, Statistics, History, Event)
LEDs indicadores Por dispositivo:
- Power
- Console
- RPS
Por puerto 10/100/1000Base-T :
- Link/Activity/Speed, PoE Mode
Por Slot SFP :
- Link/Act
Características Físicas
Fuente de poder Interna Universal,
100 a 240 VAC, 50/60 Hz
Consumo 450 Watts (max.with all PoE ports in operation)
Optional Redundant Power Supply DPS-600
Heat Dissipation 1535,49 BTU/Hr
Tamaño Montable en rack estándar de 19", 1 U
Dimensiones 440mm x 389mm x 44mm
Peso 6,0 Kg
Temperatura de Operación 0ºC a 40ºC
Temperatura de Almacenaje -10ºC a 70ºC
Humedad de Operación 10% a 90 % no condensada
Húmedad de Almacenaje 5% a 90 % no condensada
Emission( EMI) FCC Class A/ICES-003 Class A(FCC Part 15B), CE Class A(EN55022/24), C-Tick ClassA(CISPR-22)
Seguridad UL, cUL, CB
-
